New Disc Stack Centrifuge Bowl for Marine

Unit Price: USD 2.0000 / Piece/Pieces
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CIF
Min. Order: 100 Piece/Pieces
Delivery Time: 30 Days

Basic Info

Model No.: HL-070

Type: Cold Stamping

Processing Type: Shaping Metal

Material: Stainless Steel

Mould: Simple Single Process Dies

Surface Processing: Electroplating

Fine Blanking: Open

Process: Forming Process

Industry: Metal Stamping Parts

Tolerances: 0.02mm

Customized: Customized

Additional Info

Packaging: cartons

Transportation: Ocean,Land,Air

Port: Tianjin

Product Description

New Disc Stack Centrifuge Bowl for Marine

Disc Centrifuge Bowl

Oil process centrifugal separation filtration technologies disc centrifuge:

This bowl centrifuge  is a three-phase separation, manually slag separation machine, can realize liquid-liquid-solid separation slagging.  and this disc centrifugal separator is specially manufactured for beverage and milk industry.

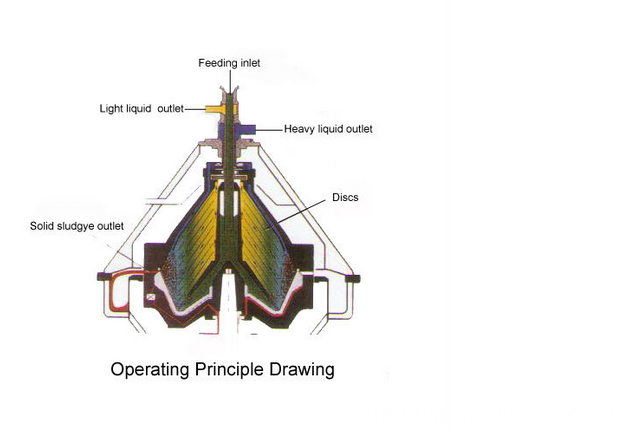

Working Principle of  disc centrifuge:

The motor actuates the bowl to rotate around spindle through transmission system. The separated suspension liquid enters into bowl through the feed pipe on top, and falls on the material distribution tray. Under the function of centrifugal force, it flows to the wall of bowl, and the liquid phase is thrown into the space of machine cabinet through gauze and filter opening on the wall of bowl and collected on the under pan, to be discharged via liquid drain pipe, while the solid phase is retained on the inner side of the filter gauze. If rinse is required, washing water is to be added for rinse through washing pipe. After dehydration is completed, the bowl will stop, then the solid-phase substances will be discharged manually.

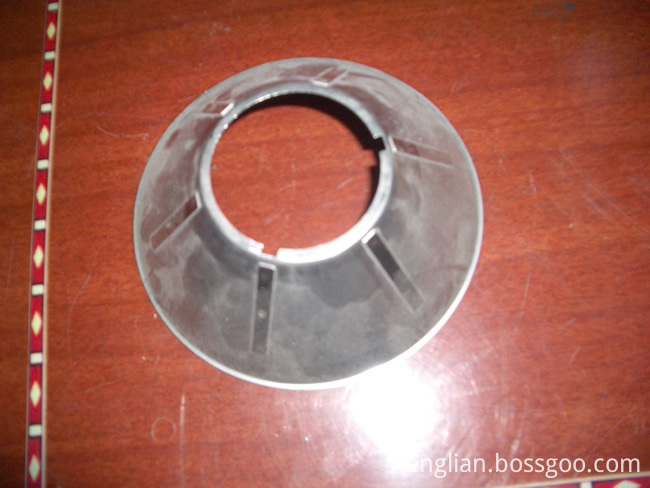

 Disc Stack Centrifuge Bowl

Application of oil centrifuge:

1. General Fruits and vegetables: tomato juice, carrot juice, lycopene, apple juice, lemon juice, citrus juice.

2. Tropical fruits: passion fruit, mango, pineapple, guava, papaya, etc.

3. Vegetable juice: celery, lettuce, cucumber, onion, garlic, spinach, etc.

4. Various wines, wort,

Parameters of milk centrifuge:

parameter

Item model

DRY400

DRY500

DRY530

bowl

diameter(mm)

420

530

530

speed(r/min)

6525

4170

4150

factor

10000

5100

5000

capacity(m3/h)

5

10

10

motor power(kw)

11

15

15

dimension(L×W×H)(mm)

1500×900×1500

1200×1100×1780

1200×1100×1680

weight(kg)

1100

1500

1500
